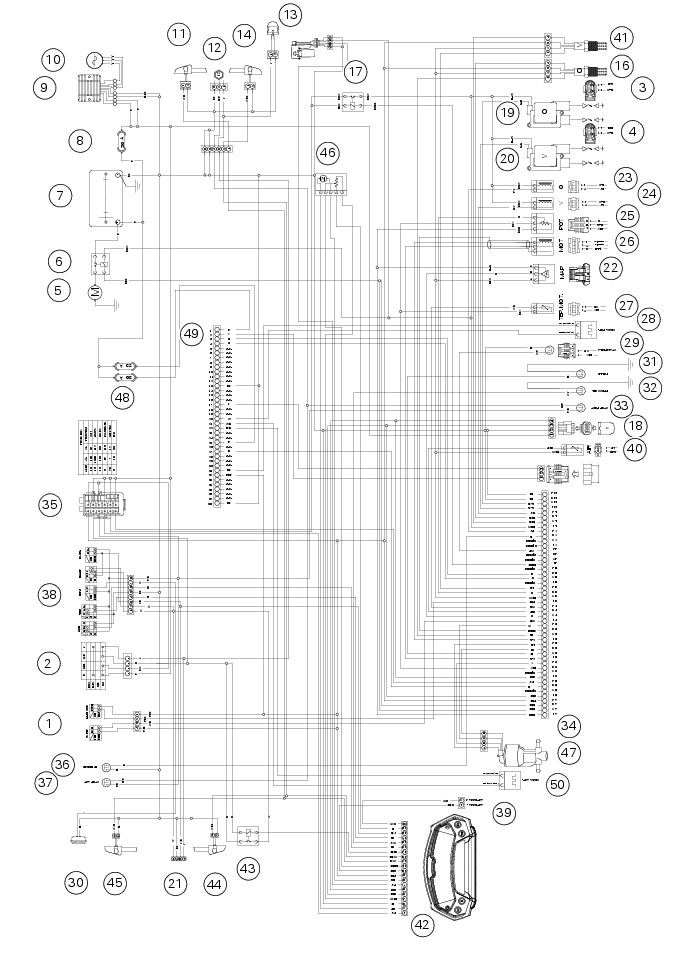

Wiring diagram
Wiring diagram
Key to wiring diagram
1
Right-hand handlebar switch
2
Ignition switch
3
Horizontal cylinder spark plug
4
Vertical cylinder spark plug
5
Starter motor
6
Solenoid starter
7
Battery
8
Main fuse
9
Regulator
10
Generator
11
RH rear turn indicator
12
Tail light
13
Number plate light
14
LH rear turn indicator
15
Fuel tank
16
Horizontal cylinder exhaust lambda sensor
17
Injection relay
18
Self-diagnosis/DDA
19
Horizontal cylinder coil
20
Vertical cylinder coil
21
Headlight
22
MAP sensor
23
Horizontal cylinder injector
24
Vertical cylinder injector
25
Throttle position sensor
26
Timing/rpm sensor
27
Cylinder temperature sensor
28
Rear speed sensor
29
Side stand
30
Horn
31
Neutral switch
32
Oil pressure switch
33
Rear stop switch
34
ECU
35
Fuses
36
Clutch switch
37
Front stop switch
38
Left-hand handlebar switch
39
Transponder antenna
40
Air temperature sensor
41
Vertical cylinder exhaust lambda sensor
42
Instrument panel
43
Light relay
44
LH front turn indicator
45
RH front turn indicator
46
Valve motor
47
Stepper motor
48
ABS fuses
49
ABS ECU
50
Front speed sensor
Wiring diagram colour codes
B Blue
Bk Black
Bn Brown
G Green
Gr Grey
Lb Light blue
O Orange
P Pink
R Red
V Violet
W White
Y Yellow
Key to fuse box

Position
Consumer
Rating
1
Key ON
10 A
2
Side lights, high/low beam
15 A
3
El. item
15 A
4
Instrument panel
5 A
5
Injection
20 A
6
ECU
5 A
7
Spare
20 A
8
Spare
15 A
Routing of wiring on frame
The routing of the wiring has been optimised to ensure the minimum obstruction.
Each section is designed to prevent interference with parts that might damage wires or cause operating failures when riding. The plates on the following pages show the origins (“0” points) for correct re-routing of wiring and the locations of cable ties.
Each figure includes references to the plates showing the wiring routing or the item to which it must be connected.

Position

Description
1
Table A
Main wiring branch
2
Table B/Table C
Left-hand handlebar switch connector
3
Table B
Clutch connector
4
Table B/Table C
Clutch wire
5
Table B
Front brake light connector
6
Table B/Table C
Right-hand handlebar switch connector
7
Table B/Table C
Front brake light wire
8
Table B
Immobilizer antenna connector
9
Table B
Key switch connector
10
Table B
Immobilizer antenna wire
11
Table B
Key-switch
12
Table D
Front right turn signal connector
13
Table D
Front left turn signal connector
14
Table D
Headlight connector
15
Table D
Instrument panel connector
16
Table E
Vertical cylinder injector connector
17
Table E
Air/temperature sensor
18
Table E
Horizontal cylinder injector connector
19
Table F
Engine earth
20
Table F
Side stand connector
21
Table F/Table P
Battery negative terminal
22
Table F/Table P
Side stand wire
23
Table H
Alternator cable
24
Table G
Horn connector
25
Table H/Table E
Regulator/alternator connector
26
Table H/Table E
Regulator/main wiring harness connector
27
Table H/Table E
Voltage regulator
28
Table J/Table F
Potentiometer connector
29
Table K
Horizontal cylinder coil connector
30
Table L
Horizontal cylinder exhaust lambda sensor
31
Table L
Horizontal exhaust lambda sensor connector
32
Table L
Vertical exhaust lambda sensor connector
33
Table L
Fuel tank flange connector
34
Table L
Vertical cylinder exhaust lambda sensor
35
Table M
Data acquisition (DDA) connector
36
Table N
Rear wiring harness connector
37
Table N
Number plate light connector
38
Table N
Rear left turn signal connector
39
Table N
Right rear turn signal connector
40
Table N
Rear brake light connector
41
Table O
Fuse box
42
Table O
Throttle pressure/vacuum sensor
43
Table P
Contactor/battery positive terminal cable
44
Table P
Injection/lights relay
45
Table P
ECU connector
46
Table P
Vertical cylinder coil connector
47
Table P
Starter contactor connector
48
Table Q/Table R
Vertical cylinder temperature sensor
49
Table R/Table Q
Pickup connector
50
Table R
Pick-up sensor
51
Table P
Solenoid/starter motor cable
52
Table S
Oil pressure switch connector
53
Table T
Neutral cable switch connection
54
Table U
Rear brake light sensor connector
55
Table U
Rear speed sensor connector
56
Table U
Rear speed sensor
57
Table E
Stepper motor
58
Table M
Exhaust valve motor connector
59
Table V
Front speed sensor connector
60
Table V
Front speed sensor cable (see Sect. G 9.2,Flexible wiring/hoses positioning)
61
Table M
ABS diagnosis
62
Table M
ABS diagnosis
63
Table P
ABS ECU connector
64
Table P
Regulator fuse and ABS fuses
65
Table P
ABS Positive
66
Table P
ABS Negative
