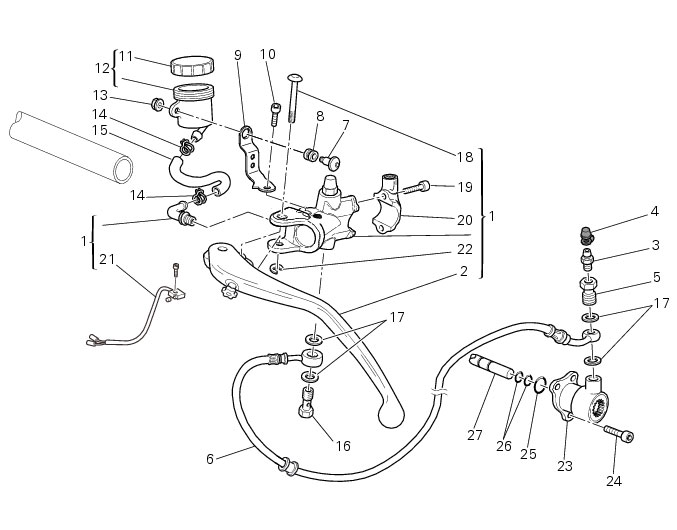

Bold reference numbers in this section identify parts not shown in the figures alongside the text, but which can be found in the exploded view diagram.

The clutch master cylinder manufacturer advises against servicing of the clutch master cylinder (1) due to the safety-critical nature of this component. Incorrect overhaul of this component could endanger rider safety.

Maintenance operations of the master cylinder are limited to replacing the following parts: control lever, reservoir unit, and master cylinder fasteners.

Unscrew the banjo bolt (16) collecting the gaskets (17), to release the clutch master cylinder unit (1) from the clutch control pipe (6).

Refer to the exploded view at the beginning of this section for indications on disassembly and replacement of the master cylinder components.

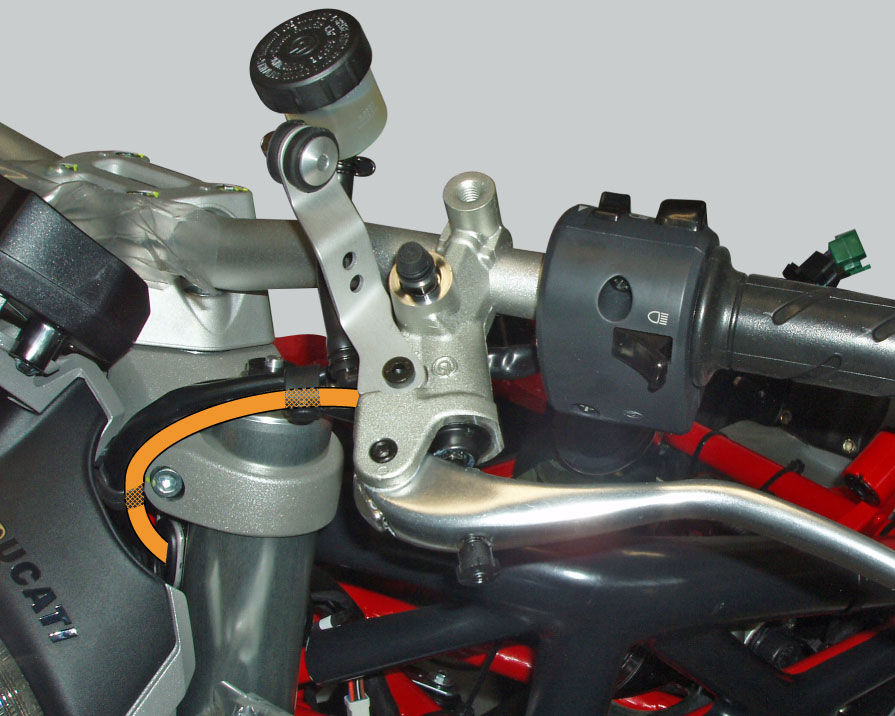

Insert the clutch master cylinder unit (1) on the left side of the handlebar to bring the terminal internal edge in correspondence to the bolted joints (A).

Tighten the fixing screws (19) to the specified torque (Sect. C 3, Frame torque settings) following the sequence 1-2-1 starting from the upper screw.

Locate the pipe (6) and gaskets (17) on the master cylinder unit (1) and secure with the banjo bolt (16), but do not tighten at this stage.

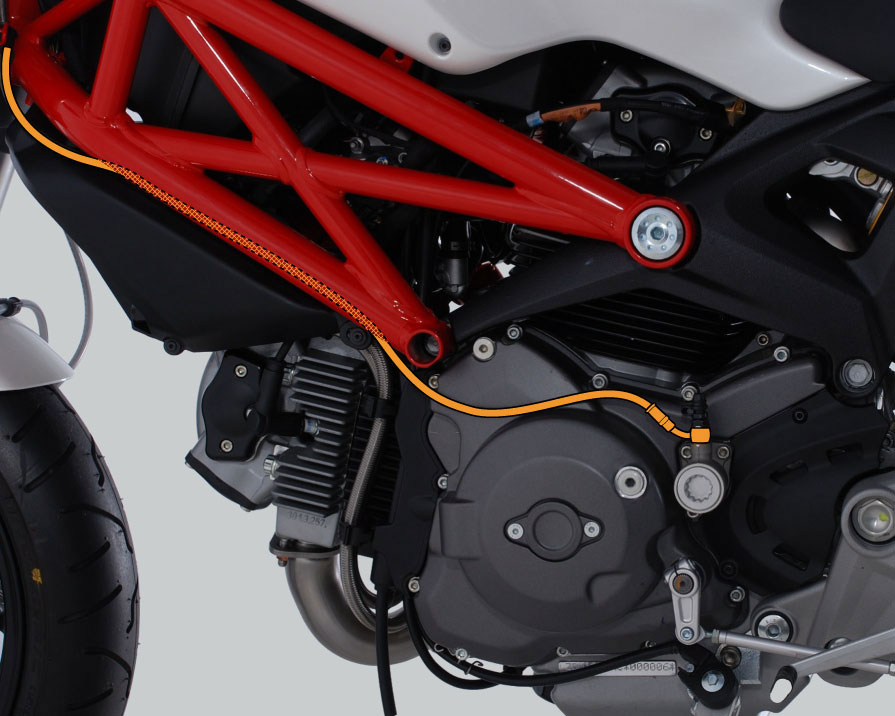

Orientate the pipe (6) as illustrated in the figure and then tighten the banjo bolt (16) to the specified tightening torque (Sect. C 3, Frame torque settings).

The clutch slave cylinder manufacturer advises against servicing of internal components of clutch transmission unit (23) due to the safety critical nature of this component.

The only components that should be renewed are the complete clutch transmission unit, the bleed valve, the seals and the com­plete clutch pushrod assembly.

Remove the dust gaiter (4) and the bleed valve (3) and unscrew the screw (5), taking care to recover the gaskets (17): the unit (23) is now disconnected from the pipe (6).

At this point, it is possible to slide also the clutch gear rod (27). Check the wear state of the two O-rings (26) and replace them, if necessary.

If the two O-rings (26) need to be replaced, it is necessary to replace also the O-ring (25) of the unit (23).

If the clutch pushrod (27) is replaced, it is necessary also to replace the O-rings (26) and (25) of the unit (23).

If the unit (23) is replaced, it is necessary also replace the O-ring (25) and the two O-rings (26) of the pushrod (27).

Fit the clutch transmission unit (23) on the crankcase, tightening the screws (24) to the specified torque (Sect. C 3, Frame torque settings).

Position the two gaskets (17) and tighten the screw (5) to the specified torque (Sect. C 3, Frame torque settings).
