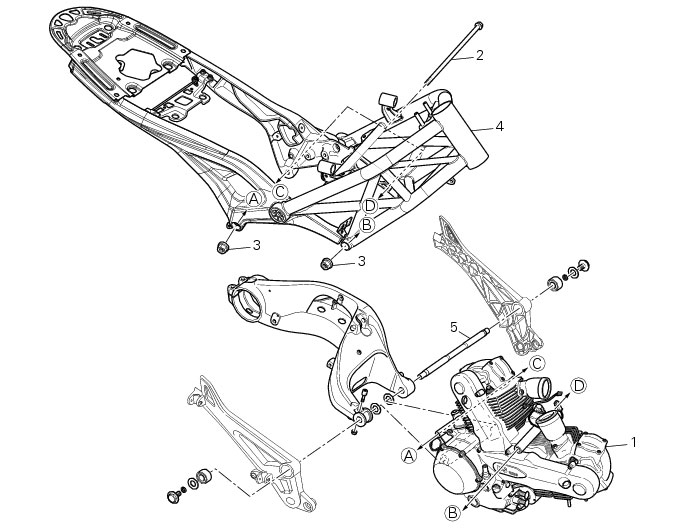

Bold reference numbers in this section identify parts not shown in the figures alongside the text, but which can be found in the exploded view diagram.

The following flow chart illustrates the logical sequence in which the parts are to be removed from the motorcycle and a reference to the section where the removal procedure is described.

Unscrew and remove the nuts (3) on the right-hand side of the frame in correspondence with front and rear mounting bolts (2) securing the engine (1).

Slide out swingarm pivot shaft (5) to remove the swinging arm from engine (1) (Sect. G 5, Removal of the swingarm).

Position the correct shims between engine and swingarm (Sect. G 5, Refitting the swingarm).

Tighten the nuts (3) to the specified torque (Sect. C 3, Engine torque settings).
